greywater sump, bilge pump
avatar
Rick
Member
Members
September 16, 2014 - 8:23 pm
Member Since: June 3, 2014
Forum Posts: 94
sp_UserOfflineSmall Offline

We're troubleshooting our new DE 38 ( I know, oxymoron; new DE 38..) and the idea that all the greywater: shower and sink, go into the bilge and get pumped out sounds like a greasy, soapy, scummy mess in a place I can't clean. I've seen self enclosed grey water catchment boxes that come with an automatic bilge pump. Shower and sink go in, water is jettisoned through a through hull. The unit has a lid that opens to allow cleaning of the mesh screen.

Anyone ever use something similar? At least for the shower? I can't imagine that system doesn't foster a smell from the collection down there.

And what's up with our manually operated electric bilge pump? Is that standard? Is that sane? Did the previous owners just chuck the float switch when it stopped working? Where should I be putting the float switch/bilge pump and the high water alarm?

Print Friendly
avatar
Patrick Twohig
San Diego, CA
Moderator
Moderators

Members
September 17, 2014 - 2:05 am
Member Since: March 13, 2014
Forum Posts: 134
sp_UserOfflineSmall Offline

Mine's got a manual bilge pump on the port side of the cockpit.  She's also go an electric one that is situated below the fuel tank which I recently discovered is actually on a steel "dip stick" so it can be serviced.  I have a secondary (backup) bilge pump that just rests in the bilge on stick but I want to fabricate a similar dipstick that the secondary one just rests on.



The grey water, sink, and shower drain overboard and not into the bilge.  I have a black water tank situated below the v-birth with a y-valve at the head.

Print Friendly
Avatar
Scott Carle
Admin
September 18, 2014 - 11:03 am
Member Since: October 10, 2009
Forum Posts: 1480
sp_UserOfflineSmall Offline

lol. ok… stock your boat should have drains and sea cocks for the sink in the galley and the one in the head directly under the sinks that drain straight out of the boat. They should not drain into the bilge. The drain in the bottom of the coolers/fridge do drain into the bilge on a stock setup. Also the chain locker will drain down the length of the boat and into the bilge.



The shower on our boat also drained into the bilge when we got it. Ours had a pump under the floor that sucked water out and pumped it aft. It was very unreliable and got plugged up and stopped for every 15 or 20 minutes of operation. We put in a dedicated bilge box with float activated bilge pump in it under the floor near the hatch in the floor of the vberth. We then ran the shower to that and sealed off the lower chain locker from the rest of the boat with a 1 1/2 inch through hull. We ran a hose from that under the vberth and to the bilge box. While we had A/C still on the boat we also ran the condensate line to the bilge box. This has worked exceedingly well for 3 or 4 years now and the boat stays as dry as a bone from all those water inputs. We ran the outflow line from the pump in the bilge box to a above the water line through hull on starboard at the top of starboard hanging closet in the vberth. We used a half inch line with a back flow preventer right off of the bilge box and a anti-siphon fitting in the top of the hanging closet. This setup has been maintenance free for us for the last 3 years.. The bilge box has a rough filter in it that the water flows directly into on its way into the bilge box. This strains out large stuff before it can get to the float switch or pump.

Print Friendly
Scott Carle DE38 Cutter s/v Valkyr
avatar
Rick
Member
Members
September 22, 2014 - 5:13 pm
Member Since: June 3, 2014
Forum Posts: 94
sp_UserOfflineSmall Offline

Scott:

Did you use a prefab bilge box/pump and if so, what kind? I can't imagine there's many choices.

The through hull I have under the sink in the head is for the head and does not have a tee for the sink although what's under the sink in the head defies close examination I know if I do I'll be ripping it out.

Rick

Print Friendly
Avatar
Scott Carle
Admin
September 22, 2014 - 5:39 pm
Member Since: October 10, 2009
Forum Posts: 1480
sp_UserOfflineSmall Offline

On our boat there is a large through hull for the head and right beside it another maybe 3/4 inch one for the sink. we have gone to a composting head so the large one is no longer used.



Our sump/bilge pump unit forward was a commercial unit. We bought it at west marine for about 100 dollars. Way over priced for plastic box but I didnt have the time or patience to glass in a permanent unit and add a strainer and filter to it. I'm not sure the model or brand.  It has worked well so far over the last 3+ years.



here is the product we are using from west marine..

one from west marine

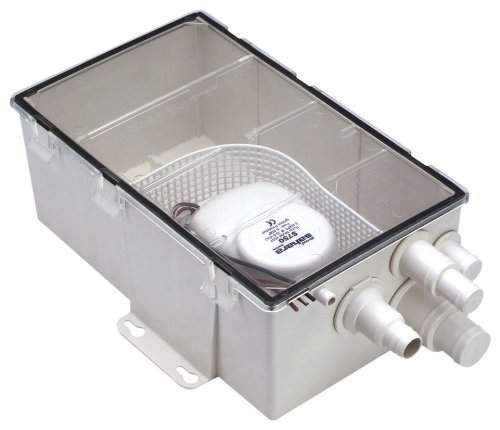

Sad to say the reviews on durability are really bad on west marines website. Ours has worked well. I did a short search and here is one from attwood that is 30 or 40 dollars cheaper with a similar size pump that has some really good reviews. Same basic thing as what we have. If ours died I would probably get this to replace it with.

 Rule model

Image Enlarger

Print Friendly
Scott Carle DE38 Cutter s/v Valkyr
Avatar
SoloBob
North Forida
Member
Members
September 22, 2014 - 8:22 pm
Member Since: March 24, 2013
Forum Posts: 37
sp_UserOfflineSmall Offline

I too, had to drag the Disgusting Wooly Mammoth out of the bilge under the engine.

I really wonder if that didn't have an effect on the tank issues I'm having.... reportedly, the PO only pumped the bilge when the sole plate started to float.  [Image Can Not Be Found]



I bought one of the knock off ones, I believe it was a Sea Dog version, but basically the same animal.  There are a few more options out there, but I think the mini tank is the best.   I'm probably going to plug the ice box ones, ( one permanently as it's now my freezer, the other with a removable plug)

Print Friendly

S/V The Last Farewell,

Currently laying Panchos Marina

Marathon, Florida
